定义
将一个复杂对象的构建与它的表示分离，使得同样的构建过程可以创建不同的表示。用户只需指定需要建造的类型就可以得到它们，建造过程及细节不需要知道。
类型
创建型
适用场景
- 如果一个对象有非常复杂的内部结构（很多属性）
- 想把复杂对象的创建和使用分离
优点
- 封装性好，创建和使用分离
- 扩展性好、建造类之间独立、一定程度上解耦
缺点
- 产生多余的Builder对象
- 产品内部发生变化，建造者都需要修改，成本较大
建造者模式和工厂模式比较
- 建造者模式更注重方法的调用顺序，而工厂模式更注重生产产品
- 创建对象的粒度不同，建造者模式可以创建复杂的产品，有各种复杂的部件组成。而工程模式创建出来的都几乎一个样子
- 工厂模式注重把产品创建出来，而建造者不仅要创建出产品，还要知道产品有哪些部件组成的
简单需求说明
有一个课程需要上线在网站，这个课程需要满足以下条件：课程名、课程的课件资源以及视频资源，只有这个三个组件有了
才能组装成上线的课程。这里在创建课时，需要有顺序的执行，最终得到一个符合要求的课程。
v1 通过中间类实现

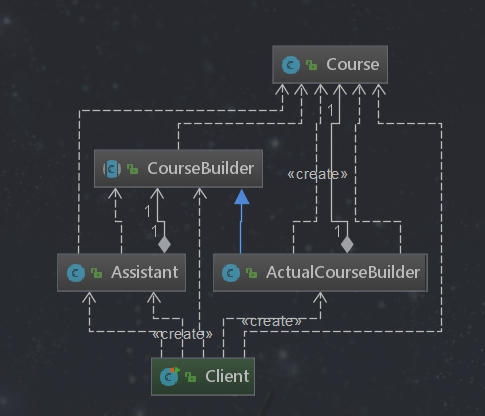

uml类图
课程类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| package com.design.pattern.builder;
import lombok.Data;
@Data
public class Course {
private String name;
private String source;
private String video;
}
|
建造者抽象类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| package com.design.pattern.builder;
public abstract class CourseBuilder {
public abstract void buildName(String name);
public abstract void buildSource(String source);
public abstract void buildVideo(String video);
public abstract Course buildCourse();
}
|
建造者实现类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| package com.design.pattern.builder;
public class ActualCourseBuilder extends CourseBuilder{
private Course course = new Course();
@Override
public void buildName(String name) {
course.setName(name);
}
@Override
public void buildSource(String source) {
course.setSource(source);
}
@Override
public void buildVideo(String video) {
course.setVideo(video);
}
@Override
public Course buildCourse() {
return course;
}
}
|
助教（对课程进行组装）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| package com.design.pattern.builder;
public class Assistant {
private CourseBuilder courseBuilder;
public void setCourseBuilder(CourseBuilder courseBuilder){
this.courseBuilder = courseBuilder;
}
public Course buildCourse(String name,String source,String video){
this.courseBuilder.buildName(name);
this.courseBuilder.buildSource(source);
this.courseBuilder.buildVideo(video);
return this.courseBuilder.buildCourse();
}
}
|
客户端
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| package com.design.pattern.builder;
import lombok.extern.slf4j.Slf4j;
import org.junit.Test;
@Slf4j
public class Client {
@Test
public void test(){
CourseBuilder courseBuilder = new ActualCourseBuilder();
Assistant assistant = new Assistant();
assistant.setCourseBuilder(courseBuilder);
Course course = assistant.buildCourse("Java进阶","ppt","Java进阶视频");
log.info(course.toString());
}
}
|
v2 静态内部类演练建造者模式（链式调用）

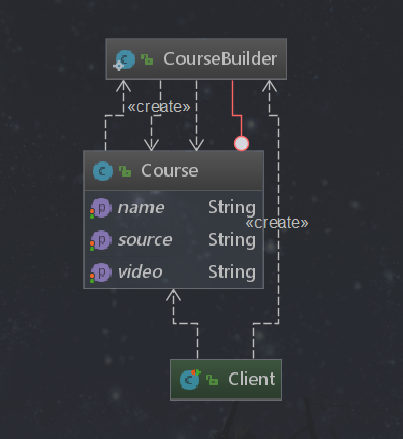

uml类图
1
| 静态内部类builder有3个属性，课程类有相同的3个属性，链式调用的时候，给builder全部或者部分赋值，build的时候，把builder对象传送到course，course获取到builder的属性，然后返回这个course；
|
Course类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
| package com.design.pattern.builder.v2;
import lombok.Data;
@Data
public class Course {
private String name;
private String source;
private String video;
public Course(CourseBuilder courseBuilder){
this.name = courseBuilder.name;
this.source = courseBuilder.source;
this.video = courseBuilder.video;
}
public static class CourseBuilder {
private String name;
private String source;
private String video;
public CourseBuilder buildName(String name) {
this.name = name;
return this;
}
public CourseBuilder buildSource(String source) {
this.source = source;
return this;
}
public CourseBuilder buildVideo(String video) {
this.video = video;
return this;
}
public Course build(){
return new Course(this);
}
}
}
|
客户端
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| package com.design.pattern.builder.v2;
import lombok.extern.slf4j.Slf4j;
import org.junit.Test;
@Slf4j
public class Client {
@Test
public void test(){
Course course = new Course.CourseBuilder()
.buildName("java进阶")
.buildSource("ppt课件")
.buildVideo("java进阶视频")
.build();
log.info(course.toString());
}
}
|
建造者模式在源码中的使用
jdk的StringBuilder和StringBuffer
1
2
3
4
5
6
7
8
9
10
11
12
13
|
@Override
public StringBuilder append(String str) {
super.append(str);
return this;
}
@Override
public synchronized StringBuffer append(String str) {
toStringCache = null;
super.append(str);
return this;
}
|
MyBatis的SqlSessionFactoryBuilder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
| public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
try {
XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
return build(parser.parse());
} catch (Exception e) {
throw ExceptionFactory.wrapException("Error building SqlSession.", e);
} finally {
ErrorContext.instance().reset();
try {
inputStream.close();
} catch (IOException e) {
}
}
}
public SqlSessionFactory build(Configuration config) {
return new DefaultSqlSessionFactory(config);
}
public Configuration parse() {
if (parsed) {
throw new BuilderException("Each XMLConfigBuilder can only be used once.");
}
parsed = true;
parseConfiguration(parser.evalNode("/configuration"));
return configuration;
}
private void parseConfiguration(XNode root) {
try {
Properties settings = settingsAsPropertiess(root.evalNode("settings"));
propertiesElement(root.evalNode("properties"));
loadCustomVfs(settings);
typeAliasesElement(root.evalNode("typeAliases"));
pluginElement(root.evalNode("plugins"));
objectFactoryElement(root.evalNode("objectFactory"));
objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
reflectorFactoryElement(root.evalNode("reflectorFactory"));
settingsElement(settings);
environmentsElement(root.evalNode("environments"));
databaseIdProviderElement(root.evalNode("databaseIdProvider"));
typeHandlerElement(root.evalNode("typeHandlers"));
mapperElement(root.evalNode("mappers"));
} catch (Exception e) {
throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
}
}
|
